Mirrors

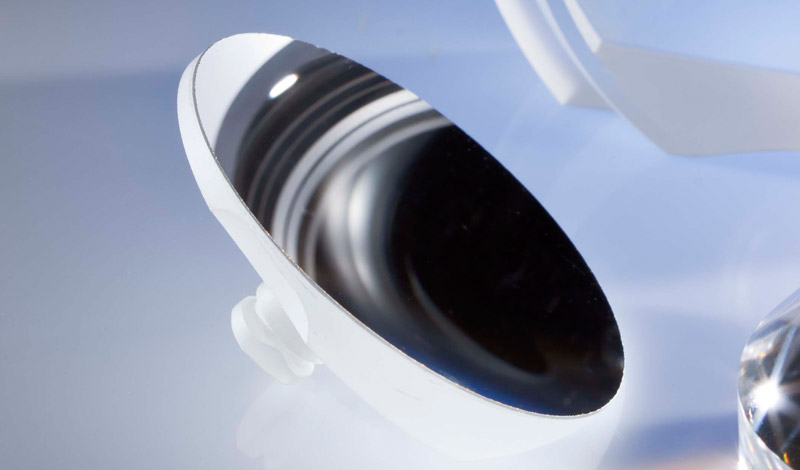

Precision Mirrors

ZYGO creates precision optical mirrors using stringently-controlled fabrication processes, enabling them to function reliably in a variety of extreme environments. Our mirrors are found underwater, in deserts, at high altitudes and orbiting the earth. We customize every mirror to meet or exceed your requirements.

Mirrors can also be light-weighted for applications where weight is critical, as is common in aerospace applications.  Light-weighting is a process in which material is removed from an optical component by machining, or other methods, while still preserving the mirror's optical performance.

  • MORE INFO
  • BROCHURES
  • TECH PAPERS
  • VIDEOS

Key Features

  • Geometry (flats, spheres, aspheres) to better than λ/50 PV.
  • Full aperture interferometry up to 32" for flats, and up to 12" for spheres/aspheres (larger with stitching).
  • Surface Roughness < 1 nm rms.

Applications

ZYGO has a long tradition of manufacturing custom-made optical mirrors for a wide variety of applications, including, but not limited to:

  • EUV mirrors
  • Lightweighted mirrors
  • Space mirrors
  • Stage Components for lithographic steppers
  • X-ray mirrors
  • Defense/Aerospace
  • Medical/Life Sciences
  • Industrial OEM
  • Intelligence, surveillance & reconnaissance (ISR)
